Generator Interlock Kit for Eaton Cutler Hammer BR Series Panels with 1

Generator Interlock Kit for Eaton Cutler Hammer BR Series Panels with 1 1/4 to 1 7/16 Inches Spacing, 150 and 200 Amp, Brushed Nickel
Description Style Brushed Nickel Country of Origin China Material Metal AC Adapter Current 200 Amps Package Dimensions 6.73 x 5.43 x 0.94 inches; 5.61 Ounces

UL TESTED: We are committed to providing interlock kit that meet UL62368-1 standards and has already passed the UL test and got the test report. The generator lockout kit is made of corrosion-resistant and high hardness aluminum alloy with chamfered and surface anodized treatment, which can be used for a long time.

COMPATIBLE MODELS: The generator breaker interlock kit is compatible with Eaton/Cutler Hammer BR Series, and CH Series with Plug on Neutral 150 and 200 amp panels and the spacing between main and the closest generator breaker is 1 1/4 to 1 7/16 inches. Please make sure the model number and spacing before purchasing！

ANODIZED SURFACE TREATMENT: Our interlock switch kit for generator has been treated with surface anodized and its surface forms a dense alumina film, which makes better corrosion resistance, electrical insulation and heat insulation to make sure you can use electricity safely.

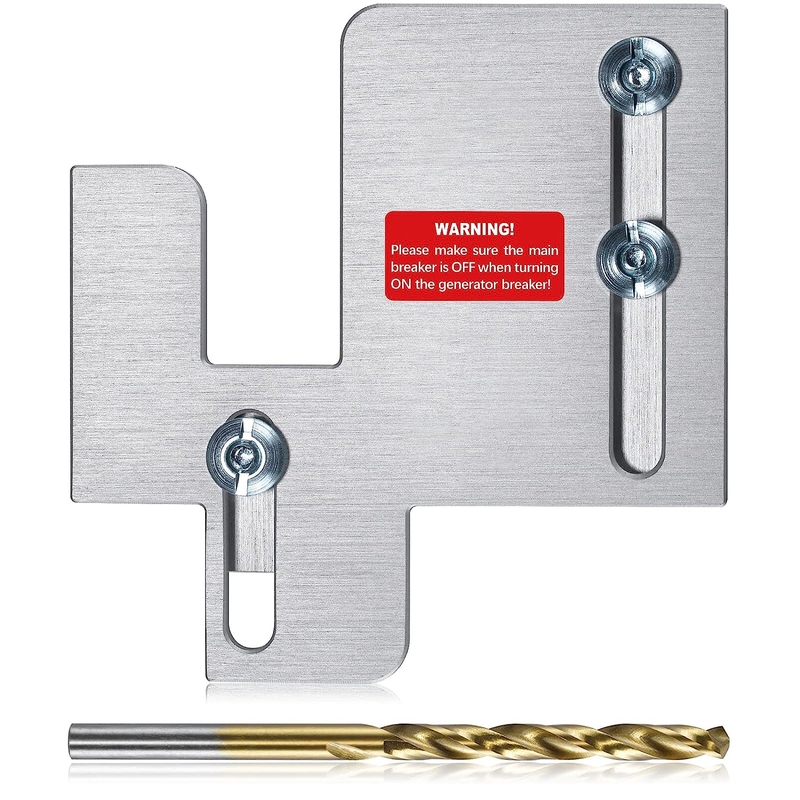

KITS INCLUDE: Top and bottom interlock plates x1; shoulder screws x3; hex nuts x3; generator start-up procedure label x1; remind labels x5; generator breaker retainer straps x2(11.8 inches x2); 3/16''drill bit x1; installation guide x1

: . please feel free through if you have any question. If the breaker interlock kit does not work properly, DO NOT USE it anymore and please immediately for support and instructions!

Product Description
LATING Generator Interlock for Eaton/Cutler Hammer BR SERIES 150 and 200 Amp Panels, Brushed Nickel
Why is a generator interlock so important? With aging electrical infrastructure and frequent severe weather, the power to your home frequently trips, which affects thousands of families nationwide. However, this can be very dangerous to use the utility and generator at the same time, it may be causing circuit loads to burn out or generators to burn out, etc.. The National Electric Code Requires a Generator Interlock Device When Powering a Breaker Panel with a Generator. Failure to Install an Interlock Could Have Fatal Consequences to a Lineman or Utility Worker!
How It Works? When moved down, the plate blocks the generator back feed circuit breaker and allows the main breaker to remain ON. When moved up, the generator back feed circuit breaker may be turned ON, but the main circuit breaker is blocked and will remain OFF.
What is a generator interlock kit? Generator interlock kit consists of two sliding metal plates held together by three bolts. It is a device just manual slide up and down interlock plate to allow safe back feeding of your home through a portable generator during power outages, preventing utility and generator supplies from being ON at the same time. It’s used to direct the generator power to any circuit in your house safely in the event of an unexpected power outage, so that you can use electricity normally. NOTE: Only qualified personnel should be working on any panel box. An amateur should never open or work on a panel box. Please follow all rules and regulations of the National Electric Code.
EASY TO INSTALL THE INTERLOCK KIT:
1. Power Off Power off, place the bottom plate(holes only) EXACTLY as shown
and then use the pen to mark holes through the bottom plate's holes.
2. Drill Holes Remove the panel cover from the breaker panel
and drill the three holes marked on the panel cover using the supplied 3/16'' drill bit.
3. Install Interlock
Insert the screws from rear of cover, install the bottom plate and top plate on the front cover of the breaker panel. Please make sure that the top plate can be pulled freely (enough space)
.
4. Test The Interlock
As shown, you see that the main breaker is ON, the generator breaker is OFF and can not be switched ON. The inter lock has been properly installed
. Lastly, apply all labels on electric panel.
CNC Lathe, Precision Cutting Our professional generator lockouts are made of heavy gauge CNC machined aluminum alloy and be chamfered for a smooth surface. they will not cut the user's hand or break.
Anodized Surface Treatment The breaker interlock kit for generator is anodized surface treatment, which makes better electrical insulation and heat insulation, safe, and it has a beautiful and long-lasting professional appearance. You will love it!
Drill Bit And Screws Supplied drill bit is made of steel and plated with PVD titanium on the surface with a metallic appearance, never fading, high hardness and wear resistance. The surface of our screws is galvanized, which is durable and not easy to get rusted.
Generator Breaker Retainer Straps There are some plays in the connection between the generator breakers and it may be some movement. Zip ties go around the generator breaker and adjacent breakers to hold them solidly to the panel. This helps keep the generator breaker from shifting. Installation Spacing 1 1/2 Inches 1 3/8 Inches 1 1/4 Inches 1 1/4 to 1 1/2 Inches 1 1/4 Inches 7/8 to 1 1/4 Inches 150 or 200 Amp Breakers ✓ ✓ ✓ ✓ ✓ ✓ Interlock Weight 87 Gram 85 Gram 60 Gram 92 Gram 72 Gram 116 Gram Installation Spacing 3/4 to 7/8 Inches 2 1/2 Inches 2 1/4 Inches 3 1/4 to 4 Inches 1 to 1 1/8 Inches 2 1/4 Inches 150 or 200 Amp Breakers 100-125 Amp ✓ ✓ ✓ ✓ ✓ Interlock Weight 61 Gram 172 Gram 106 Gram 171 Gram 50 Gram 110 Gram
